Product Overview

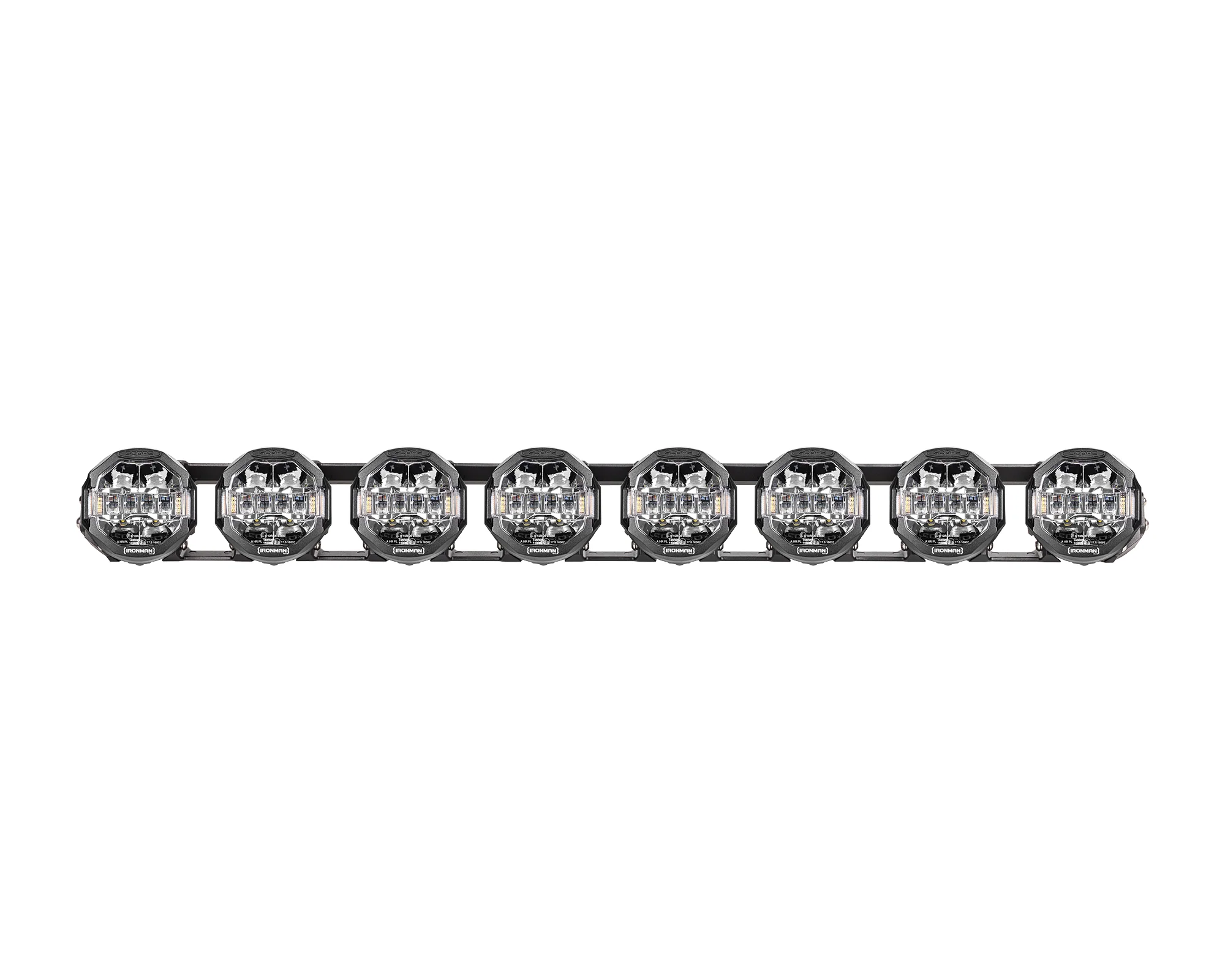

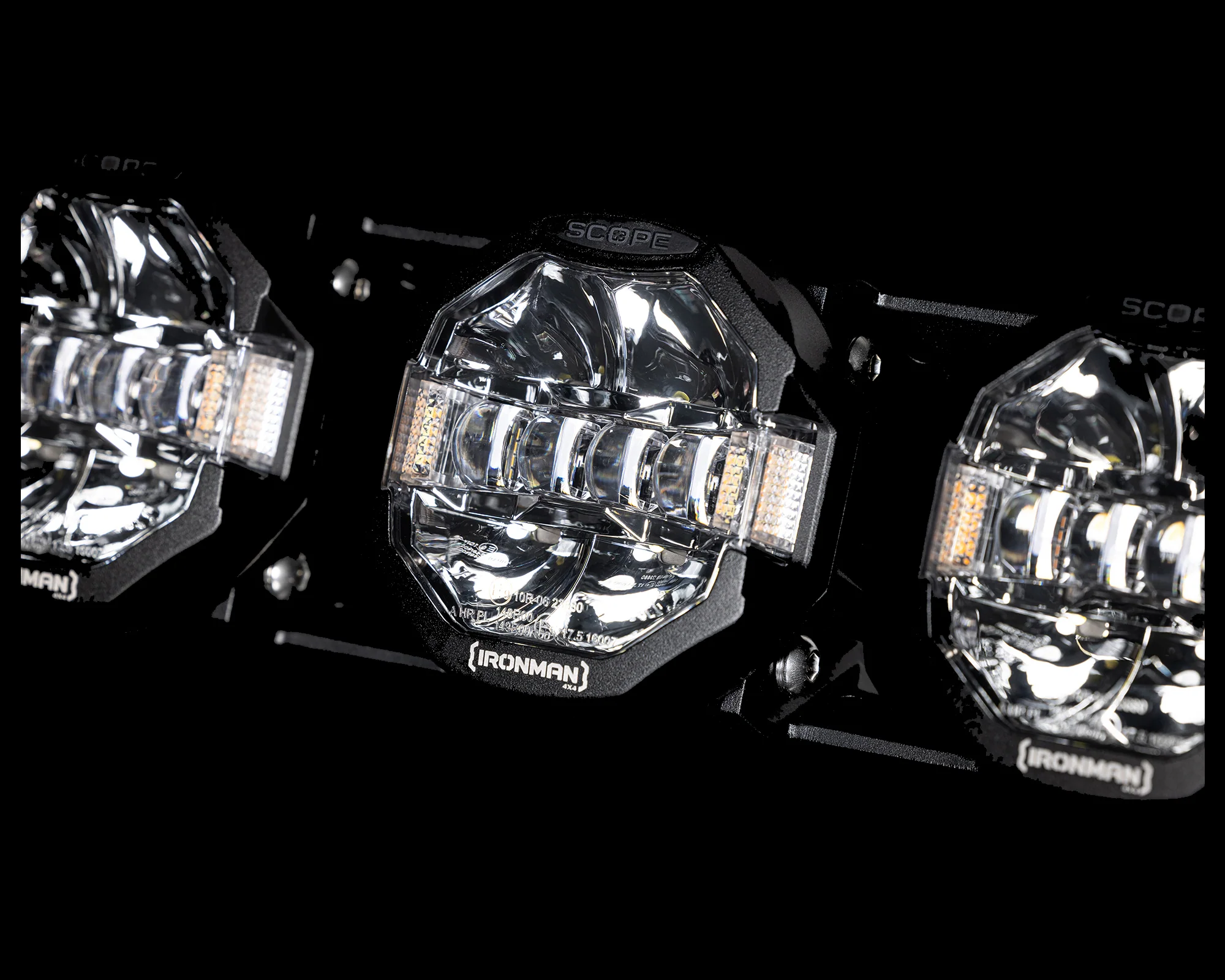

The Ironman 4x4 Scope 42-inch Light Bar is a cutting-edge, high-performance roof-mounted LED light bar delivering over 35,000 raw lumens through 8 advanced combo beam TIR (Total Internal Reflection) optic modules, paired with precision hooded reflectors for exceptional beam control and output efficiency.
Powered by top-spec OSRAM LED chips and encased in a durable die-cast aluminium housing for optimal heat management, the Scope 42 achieves an industry-leading 89.9% output efficiency, ensuring maximum usable light from every watt consumed.
It is specifically engineered for seamless integration with Ironman 4x4 Raid Roof Racks.
Position lights deliver a DRL (Daytime Running Light) effect with a sleek illuminated logo for a modern, premium finish.
The Scope 42 is fully waterproof and dust-proof to IP68 — suitable for river crossings and the harshest outback conditions.
Key Features
- 35,200+ raw lumens via 8 combo beam TIR optic modules with hooded reflectors
- OSRAM LED chips for world-class light output, efficiency, and longevity
- Die-cast aluminium housing for superior heat management and durability
- Exceptional 89.9% output efficiency, maximum usable light per watt
- Combo beam, wide horizontal spread ideal for bush tracks, scrub, and alpine roads
- IP68 waterproof and dust-proof rating, suitable for water submersion and outback dust
- DRL-style position lights with illuminated Ironman 4x4 logo for a premium aesthetic
- Deutsch 3-pin connector, industry-standard robust electrical connection
- Operating temperature range: -40°C to +85°C for extreme climate reliability
- Designed for seamless integration with Ironman 4x4 Raid Roof Racks
- 1 LUX reach at 760 metres, exceptional long-range illumination
- 3-year manufacturer warranty
Technical Specifications
- Beam Pattern: Combo (TIR optics with hooded reflectors)
- Power: 336W
- Voltage: 10–32V DC
- LED Chip: OSRAM
- Raw Lumens: 35,200
- Output Efficiency: 89.9%
- Colour Temperature: 5,700K (natural white)
- 1 LUX Distance: 760 metres
- Operating Temperature: -40°C to +85°C
- IP Rating: IP68, waterproof and dustproof
- Connector Type: Deutsch 3-pin
- Dimensions: 42.6" x 4.6" x 5.3" (1082mm x 117mm x 135mm)
- Weight: 8.3 kg (18.3 lbs)
- Certifications: R112, R10, R7, CE, RoHS
- Warranty: 3 Years
Vehicle Compatibility

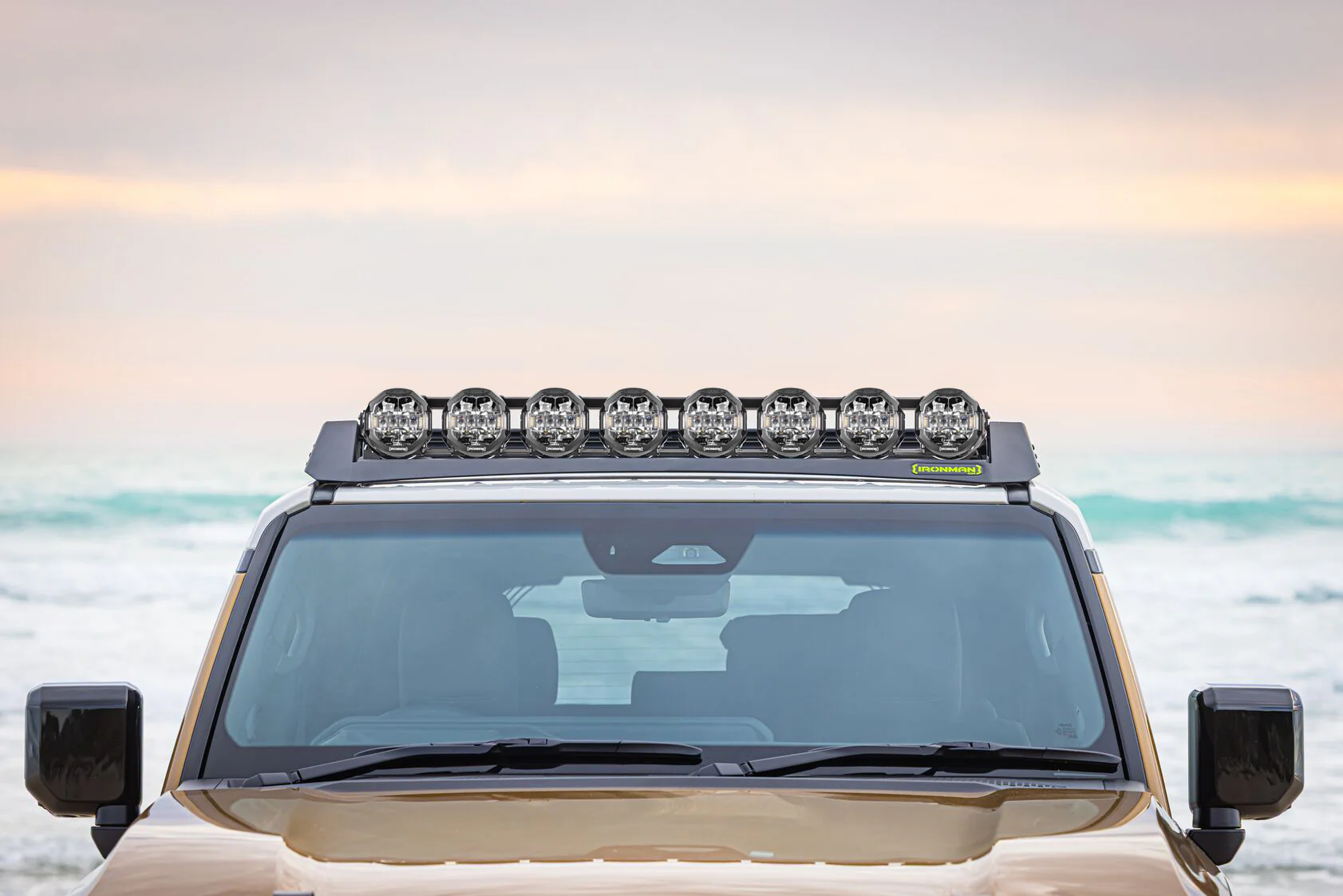

Designed specifically for Ironman 4x4 Raid Roof Racks and listed here for Toyota Tundra application.
Compatible with any vehicle fitted with an Ironman 4x4 Raid Roof Rack.
Important: On some vehicle models, light covers may not be suitable due to clearance restrictions from the roof rack diffuser; confirm with Motor Mate 4x4 prior to purchase.
Warranty & Support
Product warranty applies per standard terms and conditions. Contact Motor Mate 4x4 for full warranty details and installation support.
