Product Overview

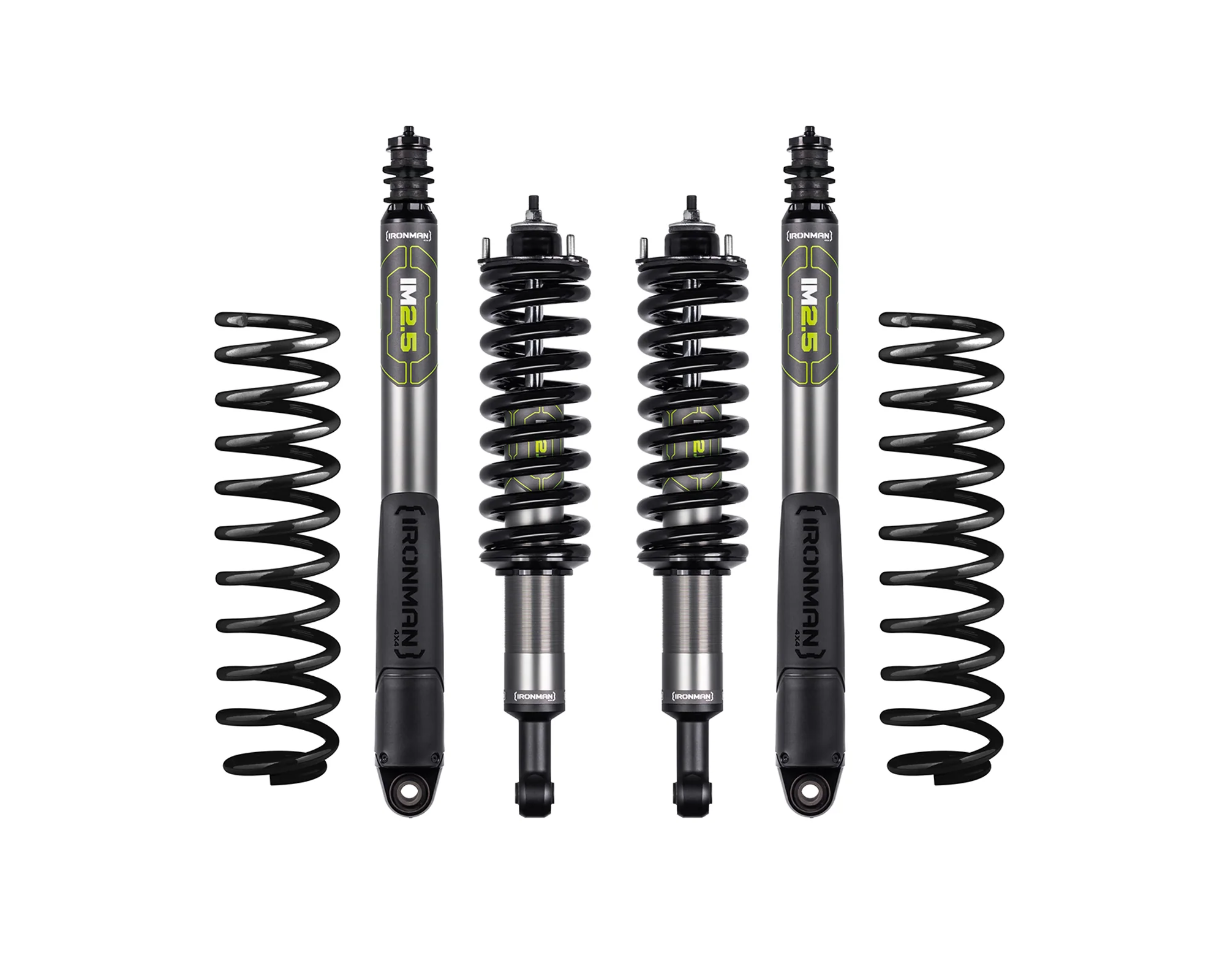

The Ironman 4x4 IM2.5 Suspension Kit is the pinnacle of monotube shock absorber technology available in Australia.
Engineered with a 2.5-inch extruded 6061-T6 aircraft-grade aluminium monotube body, the IM2.5 delivers up to 4x better heat dissipation and 30% weight savings over conventional steel twin-tube shock absorbers.
The large 57mm CNC-machined billet aluminium piston offers 60% more surface area than traditional designs, enabling precision valving for exceptional ride quality over both sealed roads and corrugated tracks.
The Internal Floating Piston (IFP) uses class-leading NOK seals with Fuchs hydraulic oil at 200PSI nitrogen pressure to deliver consistent damping performance regardless of load or terrain.
This kit provides a 2-inch lift and is available in Light, Medium (Heavy) spring ratings to suit different vehicle setups and load configurations. The IM2.5 is fully rebuildable and requires no regular servicing.
Key Features
- 2.5-inch aircraft-grade 6061-T6 aluminium monotube body, 4x better heat dissipation than steel
- 30% weight reduction over equivalent steel twin-tube shock absorbers
- Large 57mm CNC-machined billet aluminium piston, 60% more surface area for precision valving
- Internal Floating Piston (IFP) with class-leading NOK seals and Fuchs hydraulic oil
- 200PSI high-pressure nitrogen gas charge for consistent, fade-free performance
- Acme-threaded adjustable coilover body allows infinite ride height tuning
- Ultra-thick Type 2 anodising (wall thickness 3-4mm) for premium corrosion protection
- Fully rebuildable design, no regular maintenance or servicing required
- 2-inch lift for improved ground clearance, approach/departure angles, and larger tyre fitment
- 4-year unlimited-kilometre warranty backed by Ironman 4x4
- Available in Light, Medium (Heavy) spring ratings to match your vehicle's load setup
Technical Specifications
- Brand / Series: Ironman 4x4, IM2.5 Monotube (Heavy)
- Lift Height: 2 inches (approx. 50mm)
- Shock Body Diameter: 2.5 inches (63.5mm)
- Shock Body Material: 6061-T6 aircraft-grade aluminium (extruded)
- Piston Diameter: 57mm billet aluminium (CNC-machined)
- Piston Seal: O-ring sealed PTFE-Teflon band
- IFP Seals: Class-leading NOK seals
- Hydraulic Oil: Fuchs premium hydraulic oil
- Gas Pressure: 200PSI nitrogen
- Anodising: Type 2 ultra-thick anodising (3-4mm wall)
- Height Adjustment: Infinite, Acme-threaded adjustable body
- Serviceability: Fully rebuildable, no regular service required
- Weight Saving vs Steel: 30% lighter
- Heat Dissipation vs Steel: Up to 4x improved
- Warranty: 4-year unlimited-kilometre
Vehicle Compatibility
Toyota Fortuner (all current generations, confirm year), Toyota Prado 150 Series (2009–2017), Toyota FJ Cruiser (2006–2022).
This kit is also noted as compatible with the Toyota 4Runner (2009+).
Please advise Motor Mate 4x4 of your exact vehicle, model year, and current modification setup to confirm the correct spring rate (Light, Medium, or Heavy) for your configuration.
Warranty & Support
Product warranty applies per standard terms and conditions. Contact Motor Mate 4x4 for full details and installation support.
